Russian Plate and Frame Filter Press
Uniwin plate and frame filter press provides a practical and flexible solution for industrial solid-liquid separation. The alternating plate-and-frame structure forms independent filter chambers, helping achieve stable filtration and reliable filter cake formation.
Suitable for sludge dewatering, chemical processing, mining, stone wastewater, food processing, and other filtration applications.
Product Overview
The plate-and-frame filter press is a type of batch filtration equipment that achieves solid-liquid separation by pumping fluid into filter chambers formed by an alternating arrangement of filter plates and frames. The fundamental difference between the plate-and-frame filter press and the recessed-plate (chamber) filter press lies in the structural formation of the filter chambers:
In a plate-and-frame filter press, the filter chamber is formed by the combination of a plate and a frame, with the frame determining the chamber’s thickness.
In a recessed-plate filter press, the unit consists directly of recessed filter plates, and the filter chamber is naturally formed by the cavities in the plate surfaces.
Advantages of Plate-and-Frame Filter Presses
Precision Filtration
- Filter paper can be used to achieve higher filtration precision
- Suitable for applications requiring fine filtration, such as in laboratories
Easy to operate
- Filter cloth replacement is simple, and operation is convenient.
- Reduce maintenance time and simplifies daily operations
Optional Filter Media
- Different filter cloths or filter papers can be selected
- Suitable for different particle sizes and filtration requirements
Product Paremeter
| Model | Filter area(m2) | Plate size(mm) | Cake thickness(mm) | Filter chamber volume(L) | Number plate(pcs) | Filtration pressure(Mpa) | Motor power(KW) | Weight(KG) | DimensionsL*W*H(mm) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BMY4/450-30U | 4 | 500*500 | 30 | 60 | 9 | ≤0.6 | 2.2 | 860 | 1950*700*900 | |||||||||||
| BMY30/630-30U | 30 | 452 | 37 | 2360 | 3590*900*1100 | |||||||||||||||
| BMY50/870-30U | 50 | 748 | 38 | 3318 | 4260*1400*1300 | |||||||||||||||
| BMY60/870-30U | 60 | 902 | 46 | 3712 | 4700*1400*1300 | |||||||||||||||
| BMY80/1000-30U | 80 | 1193 | 46 | 5259 | 5120*1500*1400 | |||||||||||||||
| BMY100/1000-30U | 100 | 1473 | 57 | 5985 | 5800*1500*1400 | |||||||||||||||
| BMY120/1000-30U | 120 | 1777 | 69 | 6776 | 6500*1500*1400 | |||||||||||||||
| BMY100/1250-30U | 100 | 1250*1250 | 1468 | 36 | 6728 | 5020*1770*1600 | ||||||||||||||
| BMY300/1500-30U | 300 | 1500*1500 | 5235 | 74 | 25526 | 8130*2200*1900 |
* The parameters above are for reference only. Please contact us for more parameters, or we can customize them.
Demonstration of Filtering Effect
Camellia Oil Filtration Effect
Rice Wine Filtration Effect
Peanut Oil Filtration Effect
Why Choose Uniwin
Reliable Filter Press Manufacturing Support

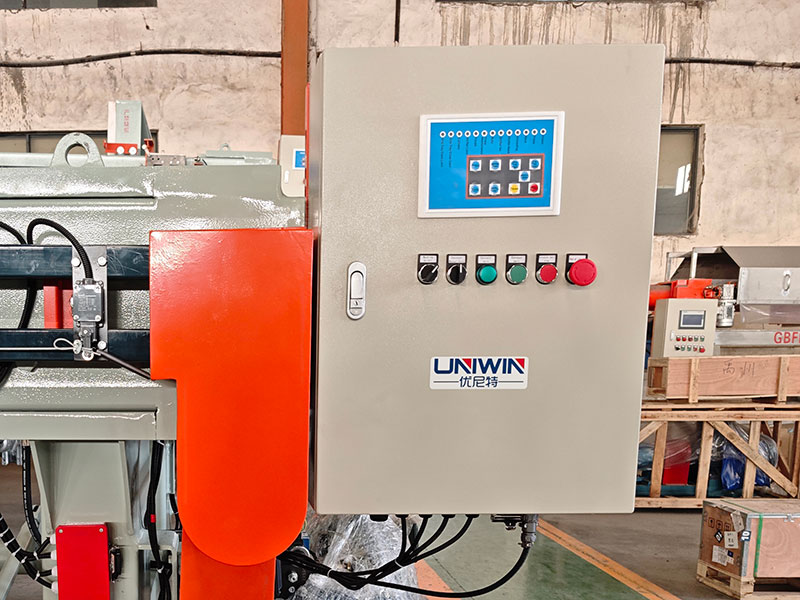

- Customizable PLC and waterproof push-buttons
- Customizable filter plate quantity, dimensions, material, and feed inlet position

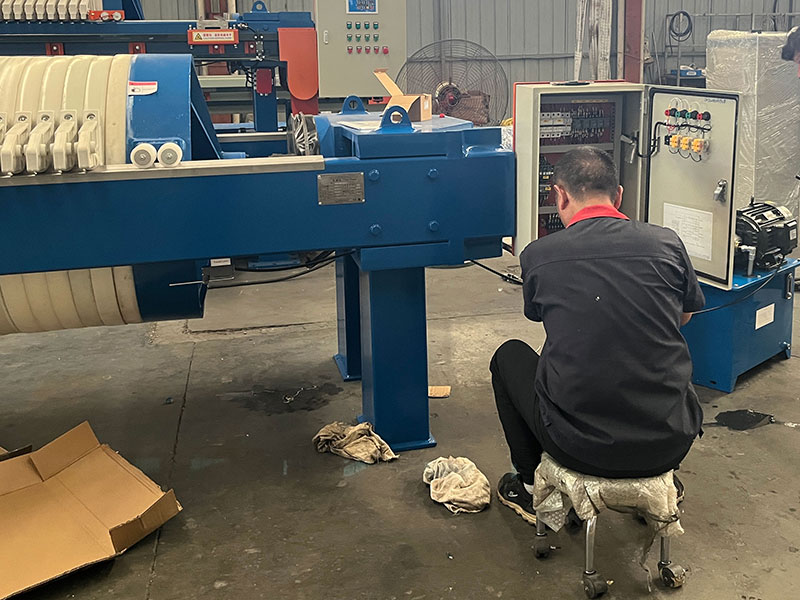

- Equipment tested prior to shipment to ensure proper operation
- Local installation guidance and after-sales support available
- Supplied with auxiliary equipment: drip tray, belt conveyor, filtrate collection groove, etc.

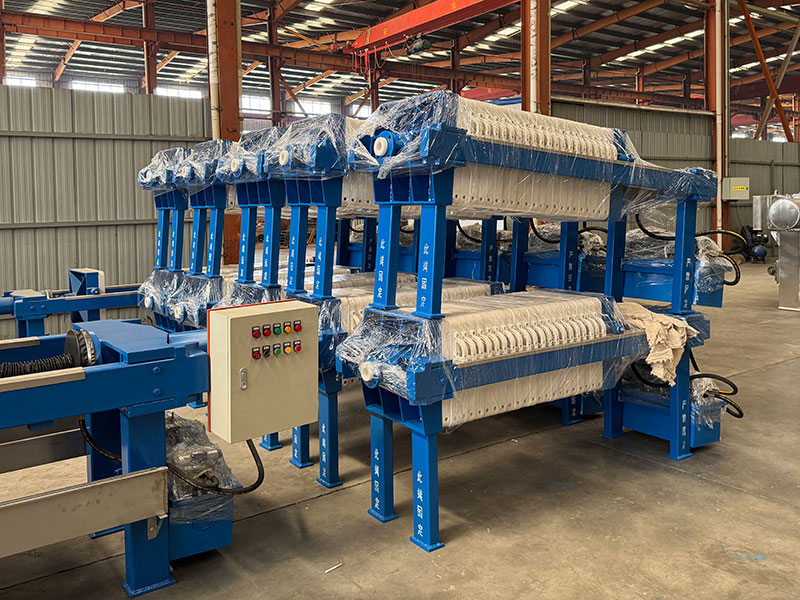

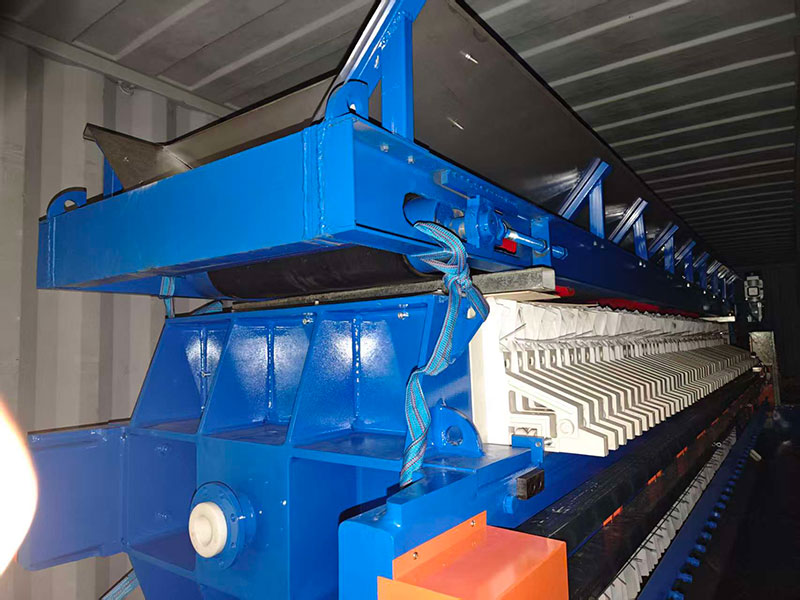

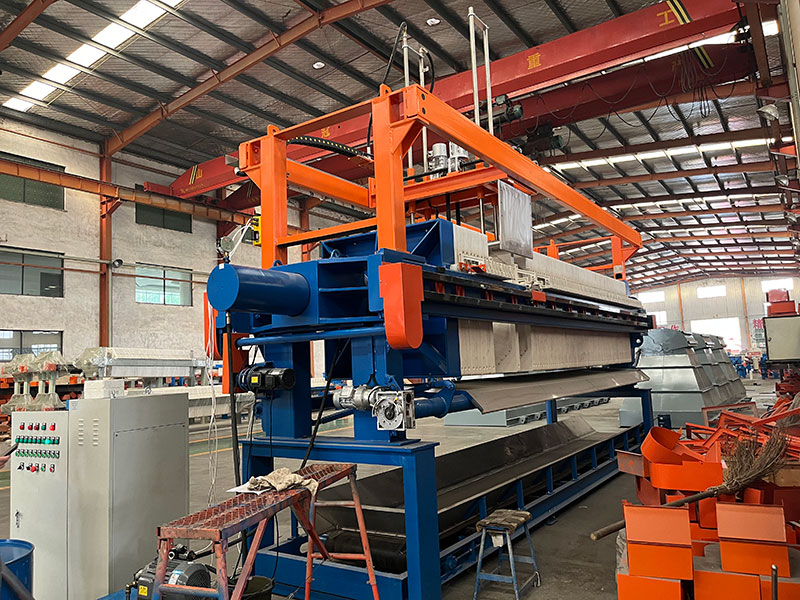

- Integrated filter press units (up to 100 m²) are fully assembled before shipment and ready for immediate use upon arrival
Plate and Frame Filter Press VS Chamber Filter Press
3 Key Differences
Different Filter Plates
- Uses a separate plate and frame structure
- The filter chamber is formed by a plate + frame combination
- Suitable for flexible filtration requirements
- Integrated chamber design without a separate frame
- The filter plate is molded as a single-chamber structure
- The filter plate is molded as a single-chamber structure
Different Feed Inlets
- Slurry enters through an angled feed port
- Feed rate is relatively slow
- Slurry enters through a central feed port
- Material distributes more quickly and evenly
- Feed pressure is more uniform
Different Filter Cloth Installation Methods
- The filter cloth is suspended from each individual filter plate
- Replacement and maintenance are more flexible
- Sealing performance is relatively weak
- The filter cloth is secured to the recessed filter plate
- It is typically laid flat by passing it through the center hole
- Sealing performance is superior
Contact us to obtain the following information
- Selection of filter press filtration area and plate dimensions
- Auxiliary equipment: feed pumps, control cabinets, hydraulic stations, etc.
- Recommendations for filter cloth and material selection
- Customized designs tailored to specific operating conditions
