How Does the Filter Press Increase Pressure?

There are three main ways to increase pressure on the filter press: one is hydraulic pressure, another is air pressure, and the other is mechanical pressure. The following will introduce these three ways of pressure and the effect of pressure on the filter press.

Pressurization Method of Filter Press

Hydraulic pressurization

Hydraulic pressurization is the most commonly used pressurization method for the filter press. In this method, the hydraulic system uses hydraulic oil as the working medium, presses the oil into the cylinder through the hydraulic pump, pushes the piston rod in the cylinder outward, and exerts pressure on the filter plate. The advantages of hydraulic pressurization are stable pressure and high reliability, and it is suitable for various types of filter presses.

Air pressure pressurization

Air pressure pressurization uses compressed air as the working medium to pressurize the filter plate. By controlling the air pressure, the pressure on the filter plate can be adjusted. The advantages of air pressure pressurization are simple structure and low cost, but the air pressure stability is poor and is easily affected by ambient temperature and humidity.

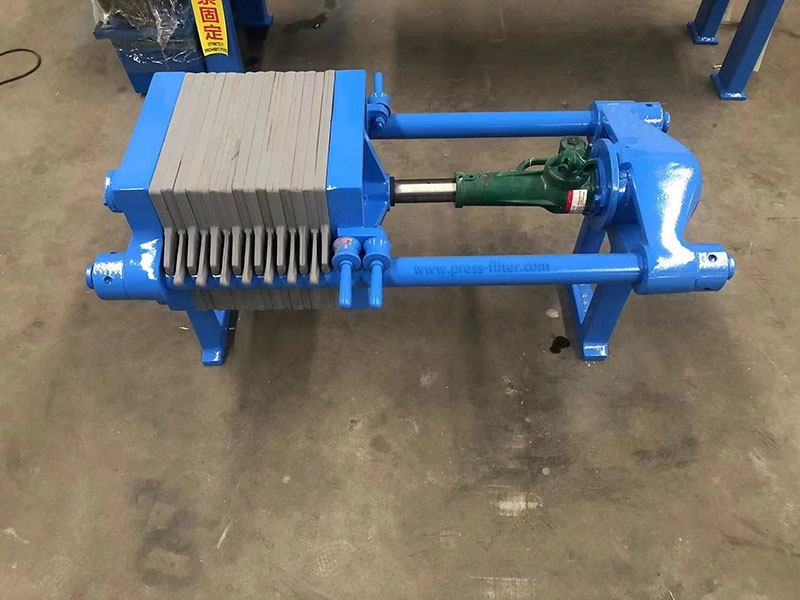

Mechanical pressurization

Mechanical pressurization is to manually or electrically push the pressing plate through a screw or gear mechanism to achieve filter plate compression. The advantages are simple structure, low cost, easy maintenance, and suitable for small filter presses or experimental equipment. The disadvantages are slow pressurization speed, requiring manual intervention or regular adjustment. And the pressure is relatively small, which is not suitable for high-pressure filtration scenarios.

The Role of Pressurization in Filter Press

Increasing filtration speed: By pressurizing, the penetration speed of the material during the filtration process can be increased, thereby increasing the filtration speed. This is because the increase in pressure can make it easier for the moisture in the material to be discharged through the filter cloth, accelerating the filtration process.
Enhanced dehydration effect: In the filter press, the increase in pressure can make the water in the material pass through the filter cloth more easily, thereby improving the dehydration effect. The increase in pressure can also make the solid particles in the material more closely packed together, forming a more compact filter cake, further enhancing the dehydration effect.
Improved separation efficiency: By pressurizing, the solids and liquids in the material can be better separated, thereby improving the separation efficiency. Under higher pressure, the binding force between solid particles and liquids is weakened, making it easier to achieve separation.

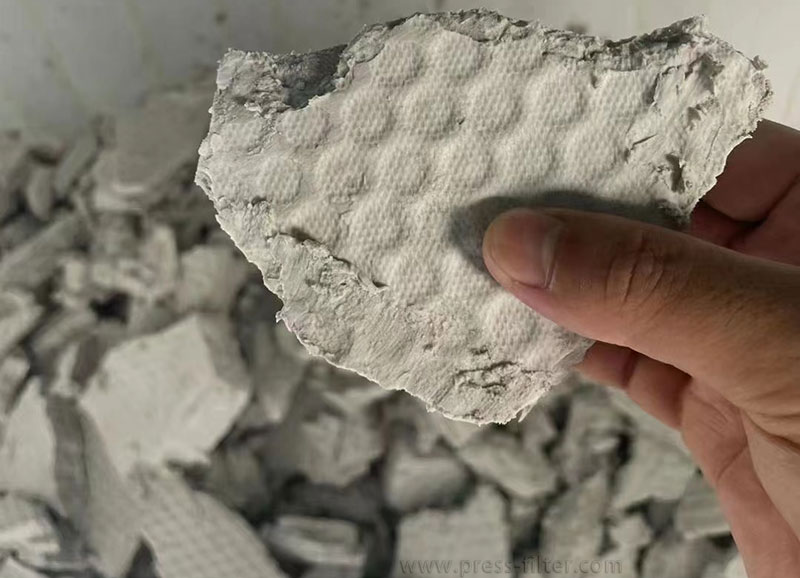

Increase filter cake strength: Within a certain pressure range, as the pressure increases, the strength of the filter cake will also increase accordingly. This helps to improve the stability of the filter cake and reduce its breakage and scattering during the filtration process.
Reduce energy consumption: Although the filter press needs to consume a certain amount of energy during the pressurization process, appropriate pressure can increase the filtration speed and separation efficiency, thereby reducing the energy consumption of the entire filtration process.

Effect of Pressure on Filter Press Performance

Filter area: Within a certain pressure range, as the pressure increases, the thickness of the filter cake increases, thereby reducing the effective filter area. Therefore, when choosing the appropriate pressure, it is necessary to comprehensively consider the requirements of filtration speed and filtration area.

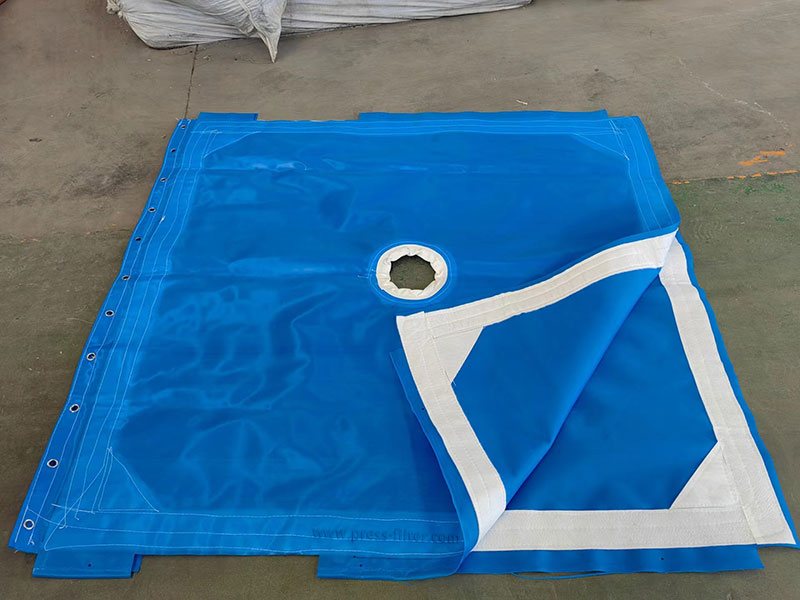

Filter cloth life: Excessive pressure will cause greater wear and tear on the filter cloth, thereby shortening its service life. Therefore, when choosing the pressure, it is necessary to consider the material and process of the filter cloth.

Energy consumption and efficiency: As mentioned above, appropriate pressure can improve filtration speed and separation efficiency and reduce energy consumption. However, too high pressure will not only increase energy consumption but may also damage the equipment. Therefore, it is necessary to select the appropriate pressure range according to actual needs.

Conclusion

Pressing plays a vital role in the filter press, which is directly related to the filtration effect, dehydration effect, separation efficiency, energy consumption, and equipment cost. In practical applications, it is necessary to select the appropriate pressurization method and pressure range according to specific needs.
