Filter Press Water Nozzle

Contact Us

Features: Waterproof, Anti-static, Alkali-resistant

Material: PP, Stainless steel

Application equipment: Filter press

Product specifications: Customizable

Opening method: Manual

Control method: Single handle single control

Product Details

What is a Filter Press Water Nozzle?

The filter press water nozzle is an important component commonly used in filter presses. It is usually used on the filter plate of the filter press to discharge the filtered liquid. It is responsible for discharging the filtered liquid. The design and selection of these nozzles directly affect the efficiency and performance of the filter press. The filter press water nozzles are mainly divided into straight-through faucets and ball valve faucets. Each of these has its own characteristics. The faucet is also available in polypropylene and stainless steel.

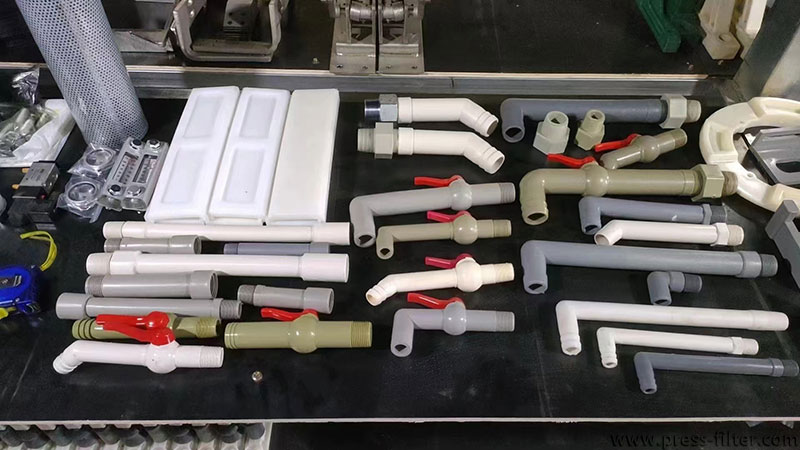

filter press water nozzle

The Difference Between Straight-Through Faucets and Ball Valve Faucets

The internal design of a straight-through faucet is relatively simple, usually a straight-through channel without complex control devices. Liquid can be discharged directly through the faucet without a flow control function. Due to its simple structure, the manufacturing cost is low, and maintenance is relatively convenient.

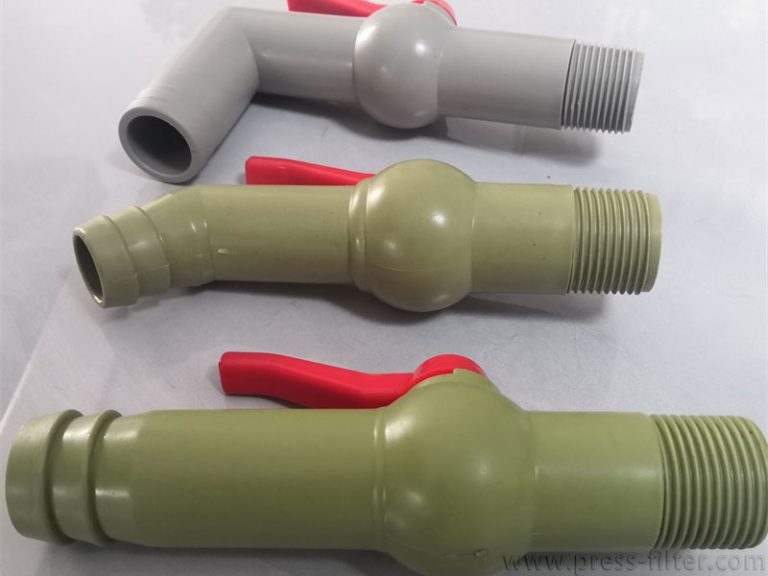

There is a spherical valve core inside the ball valve faucet. By rotating the ball valve, the flow rate and switch state of the liquid can be controlled. The ball valve faucet is usually designed with good sealing performance to effectively prevent leakage. By rotating the ball valve, the flow rate of the liquid can be accurately controlled.

In addition, the ball valve faucet can also play an important role when the filtrate is turbid. If there is a problem with the filtration of one of the filter plates, resulting in the turbid filtrate, the faucet of this filter plate can be turned off so that all filtrate will not be turbid. However, once the filtrate is turbid at the straight-through faucet, all filtrates will be contaminated.

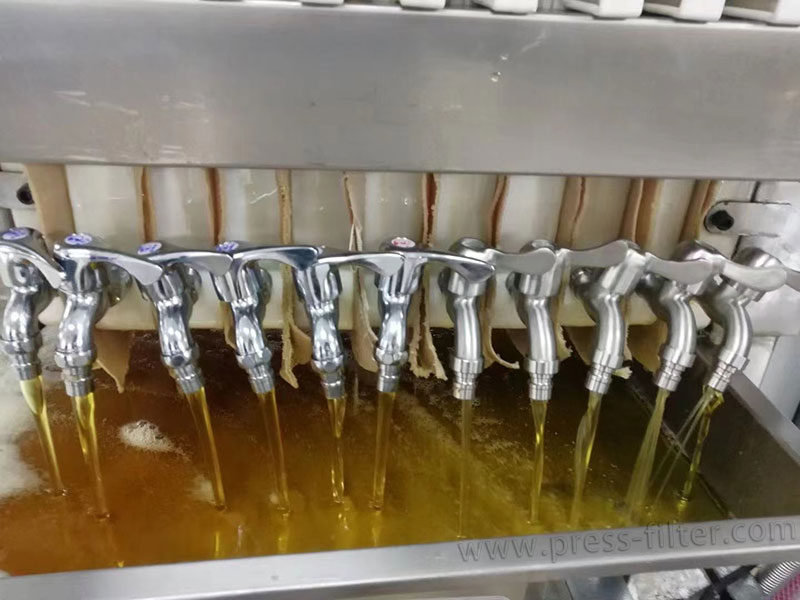

stainless steel water nozzle

The Operating Principle of the Filter Press Drain Valve

The drain valve discharges the filtered liquid through the drain port on the filter plate. Under the action of pressure, the liquid is discharged to the specified location through the channel of the drain valve. The connection between the water nozzle and the filter plate is usually designed with a sealing device, such as an O-ring or a sealing gasket, to ensure the sealing of the connection and prevent liquid leakage.

The material is pressed into the filter plate in the filter press, and the solid-liquid separation is carried out through the filter cloth. The solid particles are trapped on the filter cloth, and the liquid enters the inside of the filter plate through the filter cloth. The filtrate flows to the drain valve through the channel inside the filter plate. Due to the pressure in the filter press, the liquid is discharged through the drain port of the water nozzle. There is a sealing device at the connection between the water nozzle and the filter plate to ensure that the liquid does not leak from the connection. During installation, ensure that the sealing device is intact, check the sealing performance regularly, and replace damaged seals in time.

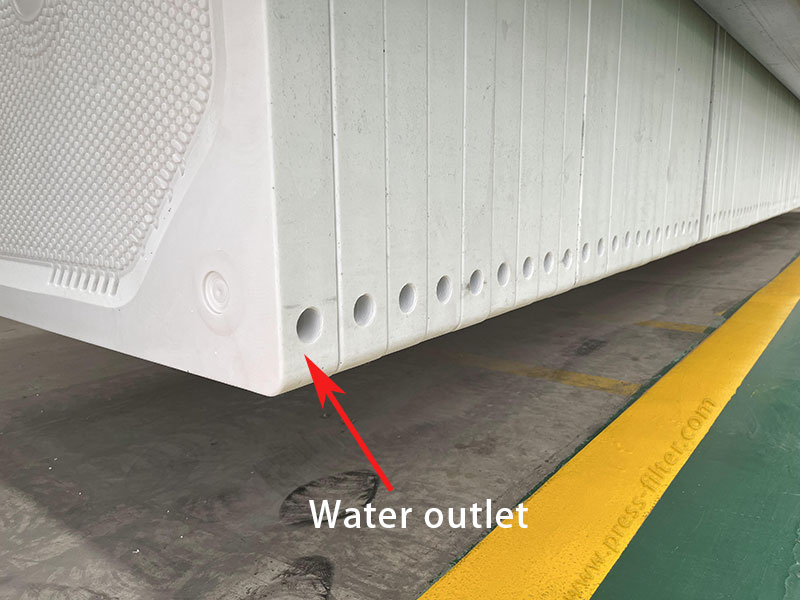

filter plate water outlet

The Function of the Filter Press Water Nozzle

  • Liquid discharge: The basic function of the filter press water nozzle is to discharge the filtrate smoothly into the filter press. This is especially important in the filter press, which discharges the filtered liquid through the water nozzle to ensure the smooth progress of the filtration process.
  • Flow Control: Many faucets have flow control features that can adjust the speed and volume of liquids that are discharged. This is critical for processes that require precise control of liquid flow, such as in the chemical, pharmaceutical, and food processing industries.
  • Sealing and anti-leakage: Faucets are usually designed with good sealing devices, such as O-rings or gaskets, to prevent liquid leakage. This plays a key role in maintaining system pressure and preventing environmental contamination.
  • Shut-off function: Some types of faucets, such as ball valve faucets, can completely shut off the flow of liquid. This shut-off function is very useful when it is necessary to stop the flow of liquid for maintenance or replacement of parts.
