Introduction

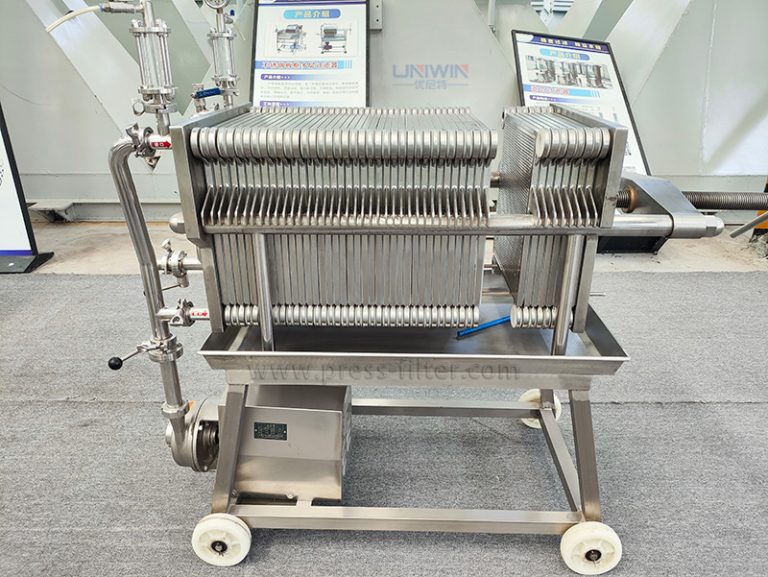

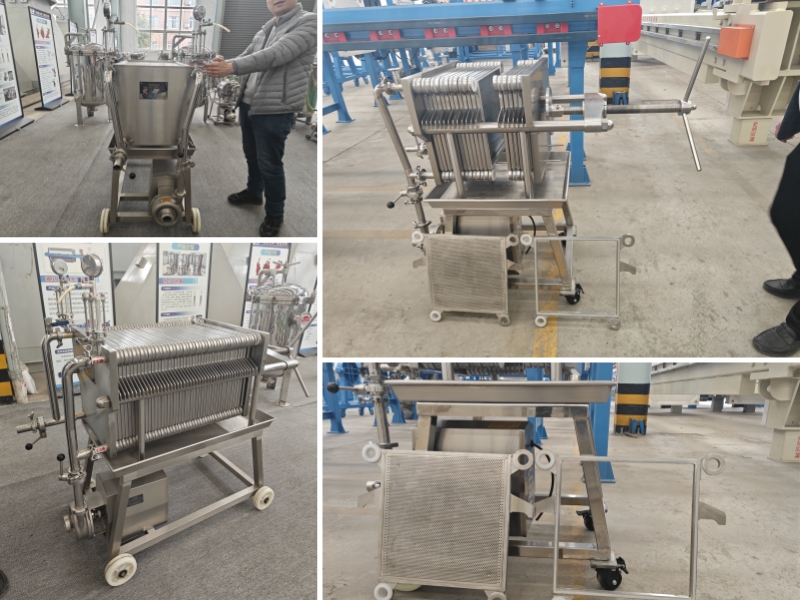

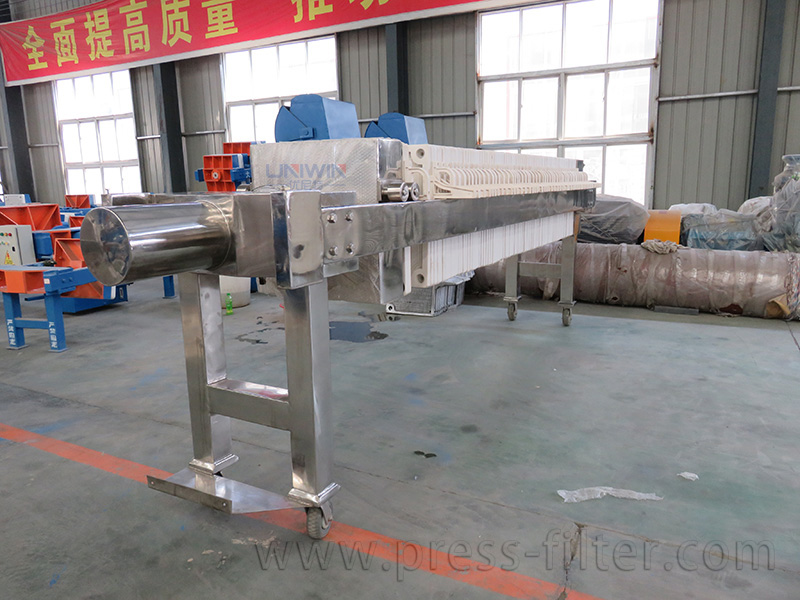

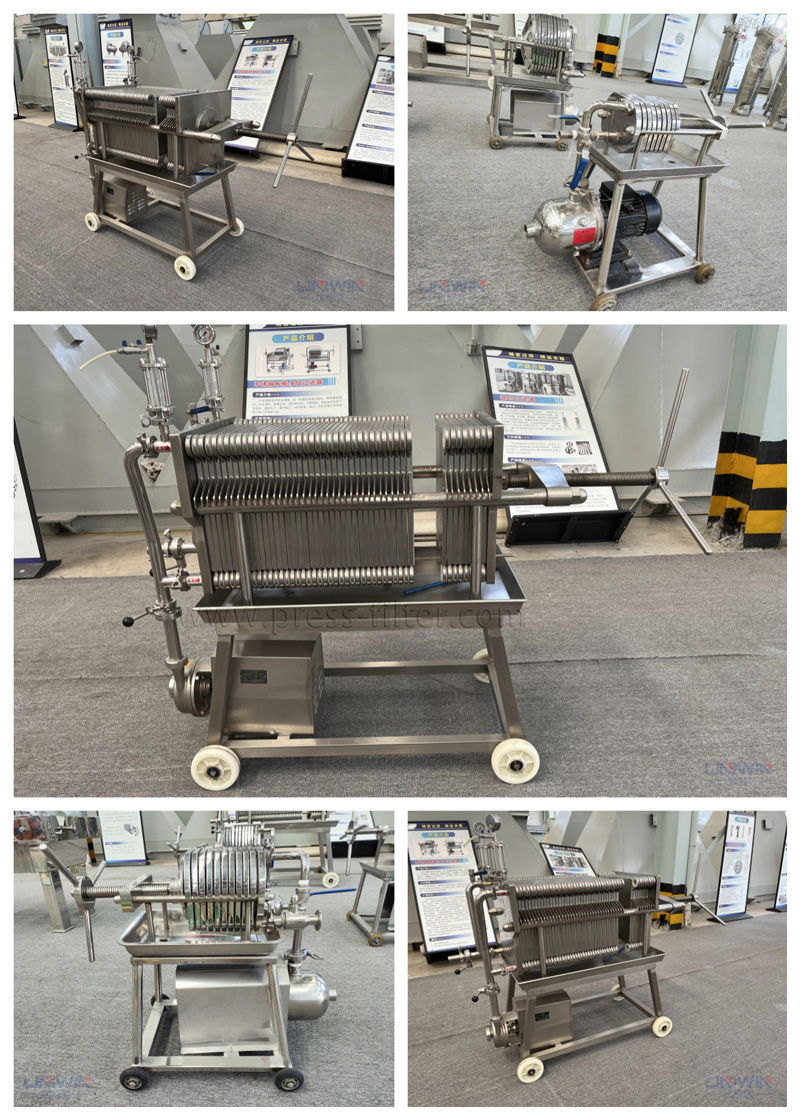

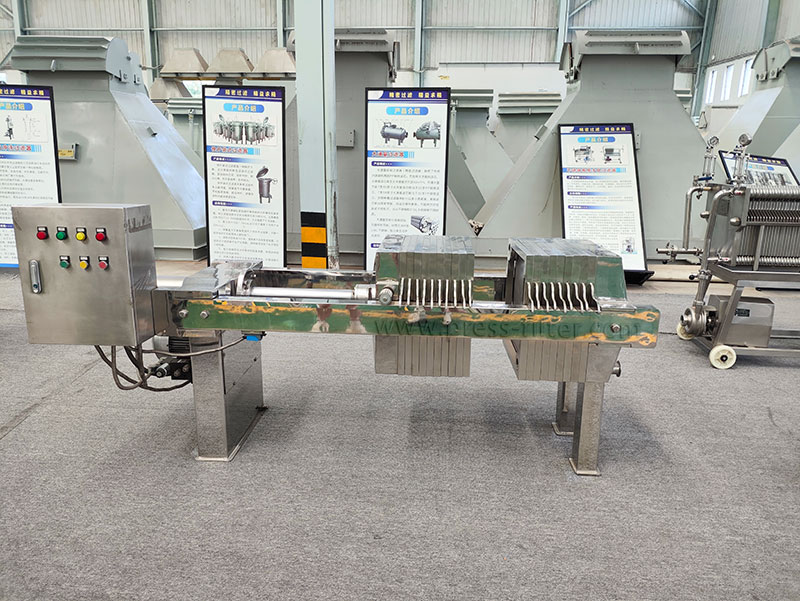

Stainless steel filter press, also known as stainless steel plate and frame filter press, is a continuous pressure solid-liquid separation equipment made of stainless steel. S.S. filter press normally adopts hydraulic closing. Compared with normal PP filter press, filter plates of stainless steel filter press are made of S.S.304 or S.S.316. The frame is carbon steel with SS coated, and the filter plates are totally made of stainless steel. It is a suspension solid-liquid separation filter machine that is widely used in food, environmental protection, light industry, pharmaceutical, chemical, metallurgy, petroleum industry, and so on. It is the ideal fine filtering equipment for beer, white wine, grape wine, liquid beverage, or sterilization filtration.
Working Principle:
The fruit juice, wine slurry, etc., is pumped into the chamber formed by the filter plates and filter plate frame. The filtrate comes through the filter cloth and flows out through the liquid outlet of the filter press. The solid will leave the chamber after one filtering cycle is finished, and then the filter cake and filtrate are well separated.
Parameters:
| TYPE | Filter area(m2) | Plate size(mm) | Cake thickness | Filter chamber voiume (L) | Number of plate(pcs) | Number of frame(pcs) | Filtretion pressure(mpa) | Weight/kg | Size/mm |
|---|---|---|---|---|---|---|---|---|---|
| BAQ1/320 | 1 | 320×320 | 25 | 13 | 4 | 5 | 1 | 300 | 1050*700*680 |
| BAQ2/320 | 2 | 320×320 | 25 | 25 | 9 | 10 | 1 | 440 | 1405*700*680 |
| BAQ3/320 | 3 | 320×320 | 25 | 38 | 14 | 15 | 1 | 600 | 1650*700*680 |
| BAQ4/450 | 4 | 450×450 | 25 | 51 | 9 | 10 | 0.8 | 780 | 1680*880*900 |
| BAQ6/450 | 6 | 450×450 | 25 | 76 | 14 | 15 | 0.8 | 995 | 1980*880*900 |
| BAQ8/450 | 8 | 450×450 | 25 | 102 | 19 | 20 | 0.8 | 1250 | 2180*880*900 |
| BAQ10/450 | 10 | 450×450 | 25 | 122 | 24 | 25 | 0.8 | 1470 | 2430*880*900 |
| BAQ12/450 | 12 | 450×450 | 25 | 152 | 29 | 30 | 0.8 | 1700 | 2680*880*900 |
| BAQ16/450 | 16 | 450×450 | 25 | 203 | 39 | 40 | 0.8 | 2170 | 3180*880*900 |
| BAY4/450 | 4 | 450×450 | 25 | 51 | 9 | 10 | 0.8 | 850 | 2030*880*900 |
| BAY6/450 | 6 | 450×450 | 25 | 76 | 14 | 15 | 0.8 | 1070 | 2280*880*900 |
| BAY8/450 | 8 | 450×450 | 25 | 102 | 19 | 20 | 0.8 | 1950 | 2530*880*900 |
| BAY10/450 | 10 | 450×450 | 25 | 122 | 24 | 25 | 0.8 | 2170 | 2780*880*900 |
| BAY12/450 | 12 | 450×450 | 25 | 152 | 29 | 30 | 0.8 | 2400 | 3030*880*900 |
| BAY16/450 | 16 | 450×450 | 25 | 203 | 39 | 40 | 0.8 | 2870 | 3530*880*900 |
| BAQ10/610 | 10 | 610×610 | 25 | 122 | 15 | 16 | 0.6 | 2030 | 2180*950*1010 |
| BAQ12/610 | 12 | 610×610 | 25 | 152 | 19 | 20 | 0.6 | 2290 | 2380*950*1010 |
| BAQ15/610 | 15 | 610×610 | 25 | 189 | 24 | 25 | 0.6 | 2610 | 2630*950*1010 |
| BAQ20/610 | 20 | 610×610 | 25 | 250 | 32 | 33 | 0.6 | 3120 | 3030*950*1010 |
| BAY10/610 | 10 | 610×610 | 25 | 122 | 15 | 16 | 0.6 | 2730 | 2230*950*1010 |
| BAY12/610 | 12 | 610×610 | 25 | 152 | 19 | 20 | 0.6 | 2990 | 2430*950*1010 |
| BAY15/610 | 15 | 610×610 | 25 | 189 | 24 | 25 | 0.6 | 3310 | 2680*950*1010 |
| BAY20/610 | 20 | 610×610 | 25 | 250 | 32 | 33 | 0.6 | 3820 | 3080*950*1010 |
| BAQ15/630 | 15 | 630×630 | 25 | 189 | 18 | 19 | 0.6 | 2620 | 2325*950*1010 |
| BAQ20/630 | 20 | 630×630 | 25 | 250 | 24 | 25 | 0.6 | 3100 | 2630*950*1010 |
| BAQ30/630 | 30 | 630×630 | 25 | 377 | 37 | 38 | 0.6 | 4130 | 3280*950*1010 |
| BAY15/630 | 15 | 630×630 | 25 | 189 | 18 | 19 | 0.6 | 2870 | 2630*950*1010 |
| BAY20/630 | 20 | 630×630 | 25 | 250 | 24 | 25 | 0.6 | 3950 | 2930*950*1010 |
| BAY30/630 | 30 | 630×630 | 25 | 377 | 37 | 38 | 0.6 | 4980 | 3580*950*1010 |
| BAY30/800 | 30 | 800×800 | 25 | 442 | 22 | 23 | 0.6 | 5710 | 3150*1300*1300 |
| BAY40/800 | 40 | 800×2000 | 25 | 595 | 30 | 31 | 0.6 | 7126 | 3630*1300*1300 |
| BAY50/800 | 50 | 800×800 | 25 | 748 | 38 | 39 | 0.6 | 8543 | 4110*1300*1300 |
Advantages

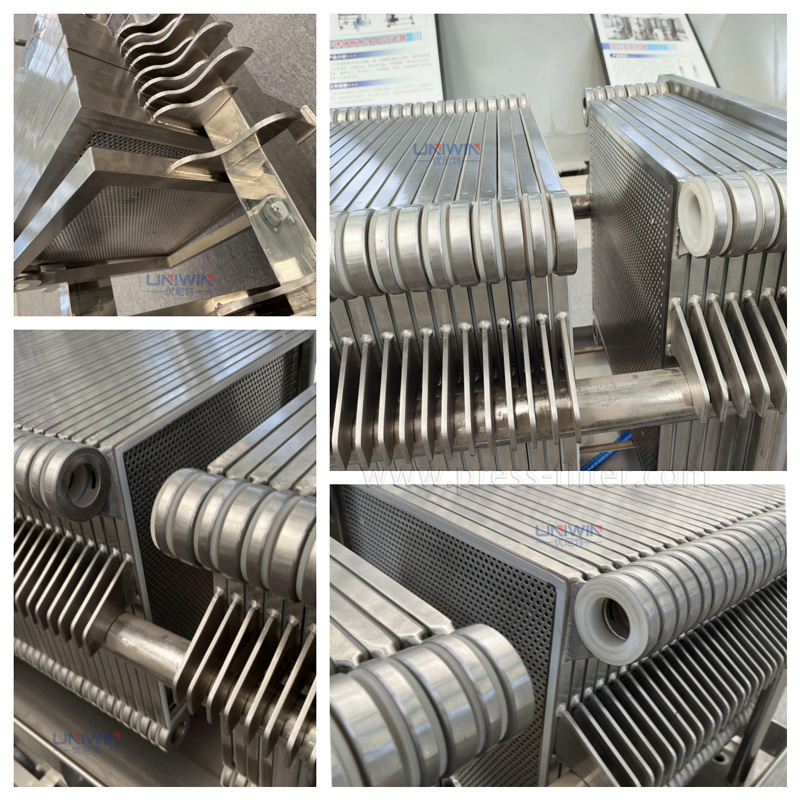

- The board is made of S.S.303/316 material. Strong corrosion resistance, high-temperature resistance, and long service life.
- The plate and frame design is adopted, and different filter media are used according to different filter requirements to achieve the best filter performance.
- Larger capacity. The stainless steel filter press can be squeezed through the hydraulic system, so the filtering area and filtering capacity are greatly increased, and the filtering effect is better.
- Easy to clean. The entire structure is coated in stainless steel.
- It can meet the requirements of the food and pharmaceutical industries.
Application
Chemical industry: dyes, pigments, soda ash, graphite, bleaching powder, fluorescent powder, etc.
Medicine: antibiotics, organic phosphorus, glucoamylase, etc.
Food: rice wine, white wine, fruit juice, beverage, beer, yeast, starch, sauce,
Oil refining: white oil, sesame oil, light oil, glycerin, machine oil, vegetable oil.
Pottery clay: activated clay, china clay, electronic ceramic clay.
Sewage treatment: chemical sewage, smelting sewage, printing and dyeing sewage, brewing sewage, pharmaceutical sewage, environmental sewage, etc.
Customer Visiting

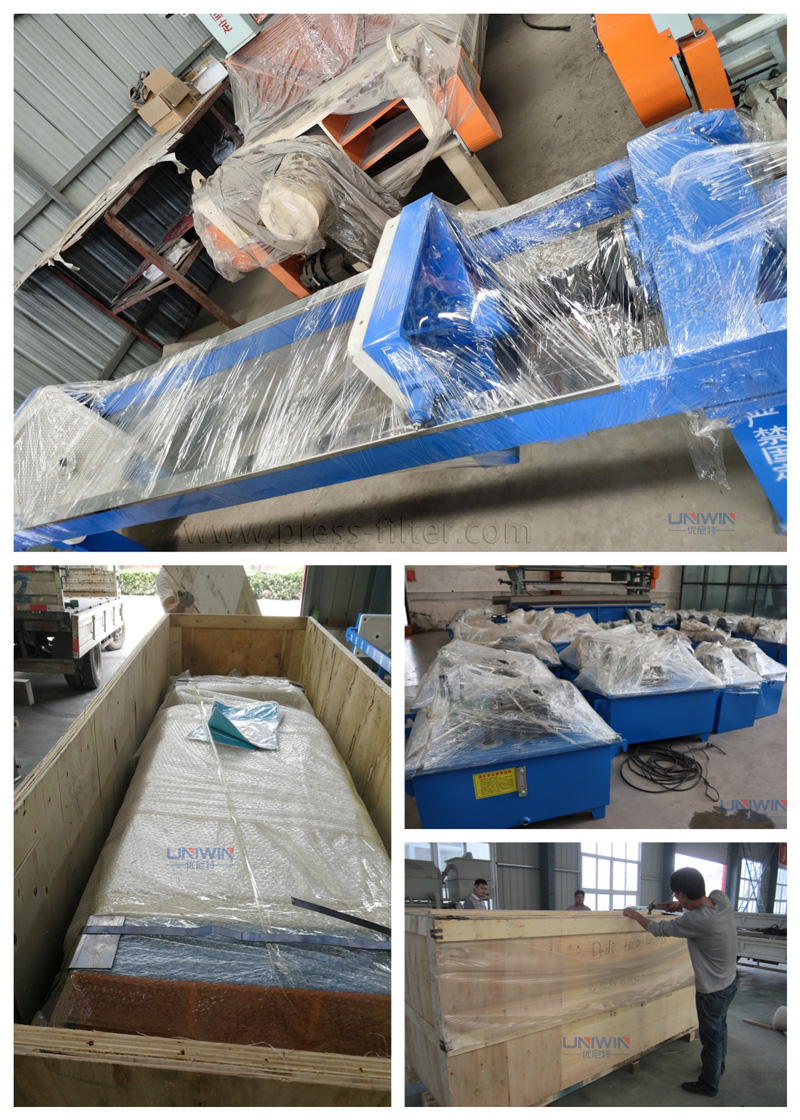

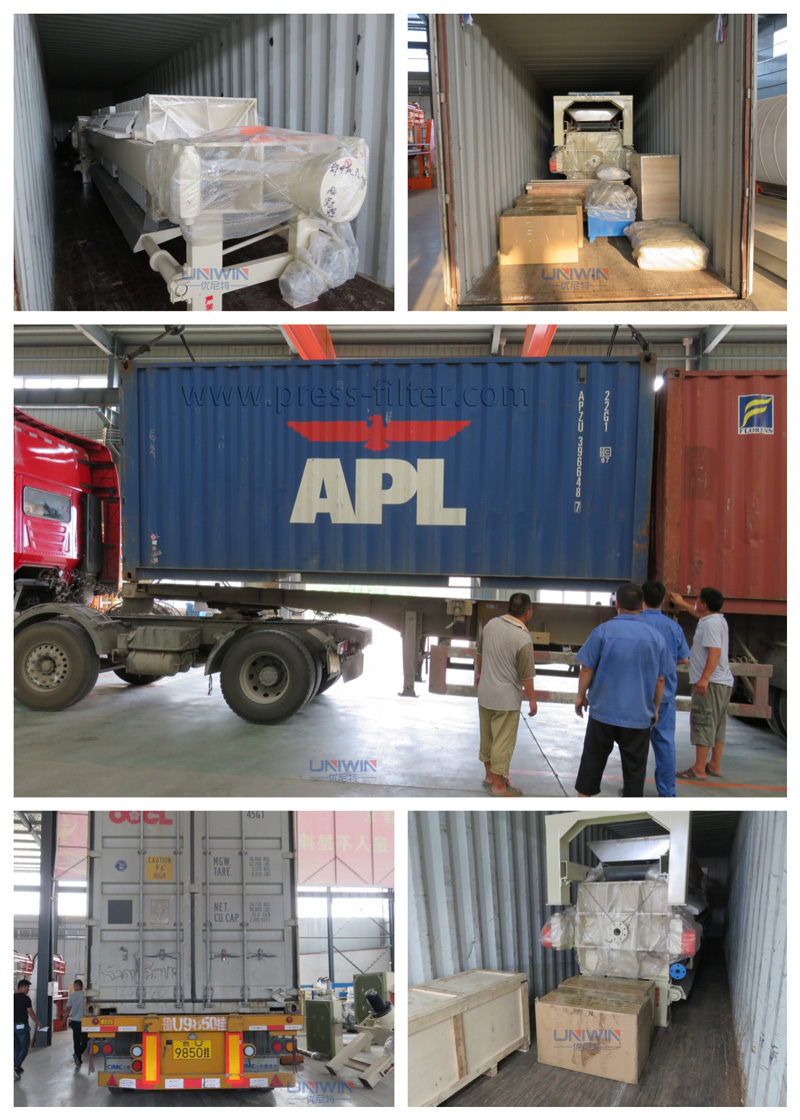

Packging&Shipping
